LM551B
5-Unit Reel MowerThe LM551B was designed to provide high-quality harvesting to all golf courses all over the world. It is equipped with the latest environmentally friendly engine - contributing to the reduction of carbon emissions and the sustainability of the golf course industry.
Features
- The LM551B is designed to produce a high-quality cut for any golf course around the world.
- Equipped with 22-inch/26-inch reels along with accessories, Baroness mid-weight 5-unit fairway mower allows you to create the best configuration to meet your turf conditions.
- The engine is a Stage 5 engine designed with cutting-edge technology.
- Adoption of high-quality reel cutter made of high carbon steel.
- 22-inch : 100.0in (254cm), 26-inch : 111.0in (282cm) width-of cut.
- The forward and backward slide function of the rear cutting units increases contour following while minimizing uncut turf.
Specification
| Mower unit type | 22 in | 26 in | |||
| Dimensions | Total length | 295 cm | |||

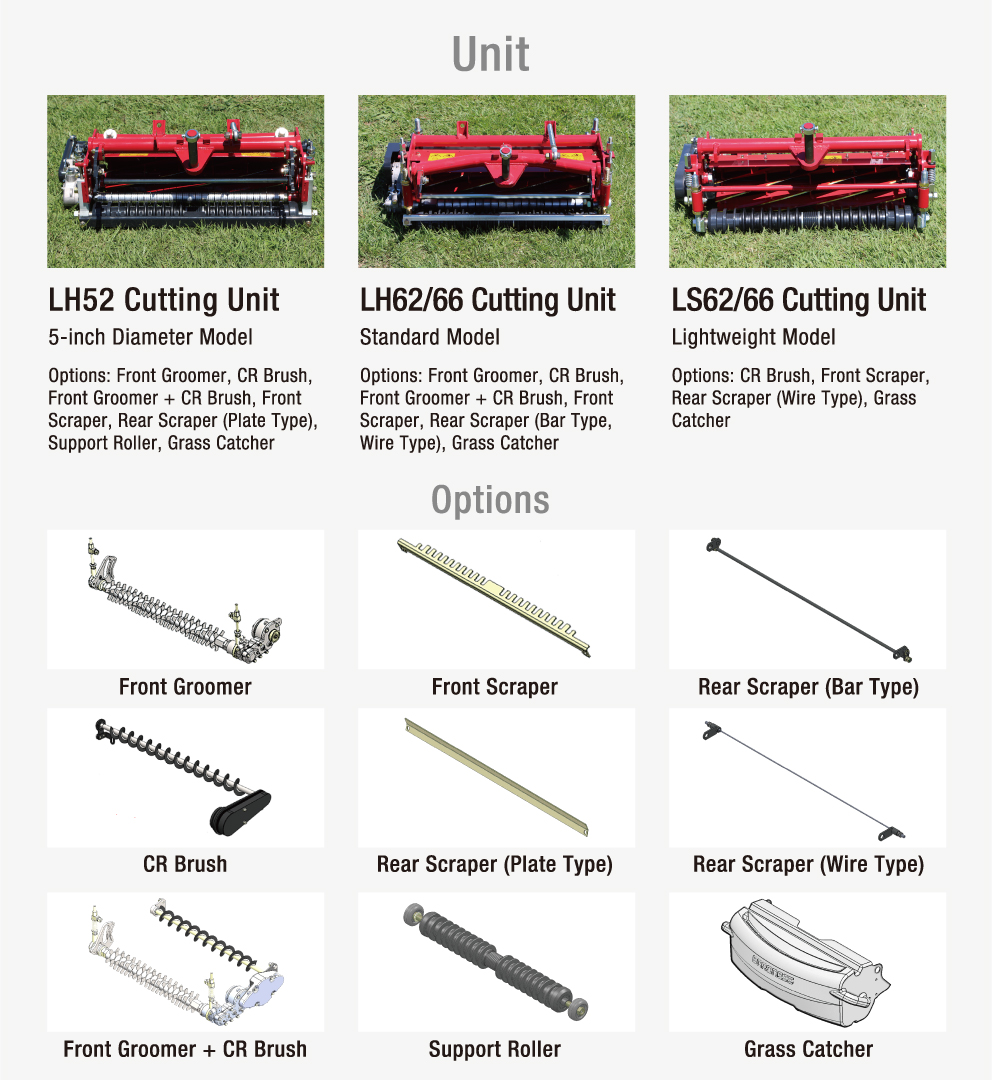

| Total width | LH52 | During operation | 292 cm | ― | |
| During transport | 220 cm | ― | |||
| LH62･66 | During operation | 294 cm | 322 cm | ||
| During transport | 220 cm | ||||
| LS62・66 | During operation | 292 cm | 319 cm | ||
| During transport | 220 cm | ||||
| Total height | Roof | 239 cm | |||
| Handle | 160 cm | ||||
| Weight | Machine (empty fuel tank) |
LH52 | with Groomer, CR brush, ROPS, Light and Ball proof net without Grass catcher |
1519 kg | ― |
| LH62･66 | with Groomer, CR brush, ROPS, Light and Ball proof net without Grass catcher |
1610 kg | 1664 kg | ||
| LS62・66 | with CR brush, ROPS, Light and Ball proof net without Grass catcher |
1549 kg | 1564 kg | ||
| Grass catchers (for one machine) | 23.0 kg | 25.0 kg | |||
| Minimum turning radius | LH52 | Front wheel (outer wheel) outside | 306 cm | ― | |
| Outer side of unit | 347 cm | ― | |||
| LH62･66 | Front wheel (outer wheel) outside | 306 cm | |||
| Outer side of unit | 347 cm | 356 cm | |||
| LS62・66 | Front wheel (outer wheel) outside | 306 cm | |||
| Outer side of unit | 345 cm | 354 cm | |||
| Engine | Model | Kubota V1505-CR-TE5 | |||
| Type | Vertical water-cooled 4-cycle diesel engine | ||||
| Total displacement | 1498 cm3 (1.498 L) | ||||
| Maximum output | ― | ||||
| Rated output | 33.0 kW (44.9PS) / 3000rpm | ||||
| Fuel tank capacity | Diesel 51.0 dm3 (51.0 L) | ||||
| Operating width (Mowing width) | 254 cm | 282 cm | |||
| Operating height (Mowing height) | LH52 | 5.0 - 20.0 mm | ― | ||
| LH62･66 | 8.0 - 45.0 mm (*1) | ||||
| LS62・66 | 10.0 - 46.0 mm | ||||
| Number of Blades | 7・9 | 9 | |||
| Drive | Traveling | HST (Full time 4WD) | |||
| Mowing | Hydraulic (Gear motor drive) | ||||
| Speed (HST) | Forward | 16.0 km/h | |||
| Reverse | 8.0 km/h | ||||
| Efficiency | 24,384 m2/h (12.0 km/h x mowing width x 0.8) |
27,072 m2/h (12.0 km/h x mowing width x 0.8) |
|||
※The factory default maximum engine rpm is 3,000 rpm.
(*1) For 0.39 in (10 mm) or less mowing height, a bed knife with a thickness of 5 mm or less is required.
