LM315GC

Riding Greens Mower

The engine can be selected from gasoline and diesel. Equipped with reel rotation (high speed / low speed) switching mechanism as standard equipment! It has become possible to shift gears in three stages. A foot pedal system is used for the reel rotation switch. Stable work is possible by controlling the pedal stroke during work.


Features

  • Uses cable wires that decrease the risk of oil leakage.
  • Use of a tilt wheel and a seat adjuster allows for a driving position that fits the operator’s body type.
  • Comes with hydraulic power steering.
  • An LED lamp lights up for visibility when the mower unit lowers.

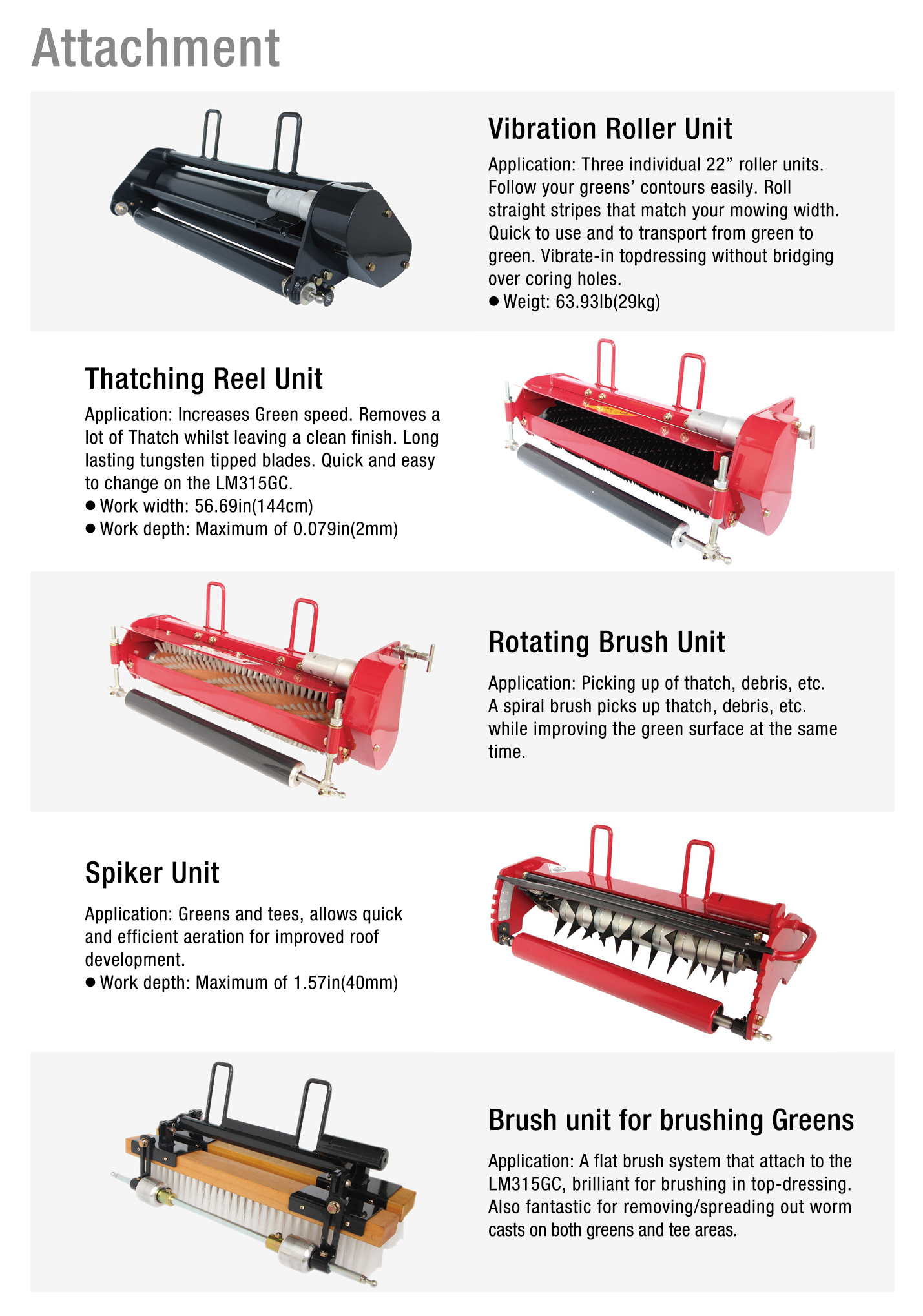

  • Optional “Rotary Brush0,” “Spiker,” “Dethatcher,” and “Stationary Brush” units.

Specification

  (Diesel) (Gas)
Type for greens
Dimensions Total length 239 cm
Total width 172 cm
Total height Steering wheel 132 - 141 cm
Weight Machine:2WD (empty fuel tank) without ROPS, Grass catcher, Groomer 659 kg 597 kg
Machine:3WD (empty fuel tank) without ROPS, Grass catcher, Groomer 684 kg 622 kg
Grass catchers (for one machine) 12 kg
Groomers (for one machine) 10 kg
ROPS + Seatbelt 28 kg
Engine Model Kubota D722-E4B Vanguard 356447
Type Vertical water-cooled 4-cycle diesel engine Air-cooled 4-cycle gasoline engine
Total displacement 719 cm3 (0.719 L) 570 cm3 (0.57 L)
Maximum output ― 13.4 kW (18.0 PS)/3,600 rpm
Rated output 12.4 kW (16.9 PS)/3,000 rpm ―
Fuel tank capacity Diesel 20.0 dm3 (20.0 L) Gasoline 20.0 dm3 (20.0 L)
Operating width (Mowing width) 152 cm
Operating height (Mowing height) 1.5 - 18.0 mm
Number of Blades 9,11
Drive Traveling HST 2WD [3WD (2WD/3WD selectable)]
Mowing Mechanical
Speed (HST) Forward 0 – 15.0 km/h
Reverse 0 - 6.0 km/h
[2WD selection of 3WD model : 0 - 9.0 km/h ]
Efficiency 7,296 m2/h (6.0 km/h x mowing width x 0.8)

※The factory default maximum engine rpm is 3,000 rpm.
